iRis X PRO Dual View (DV)

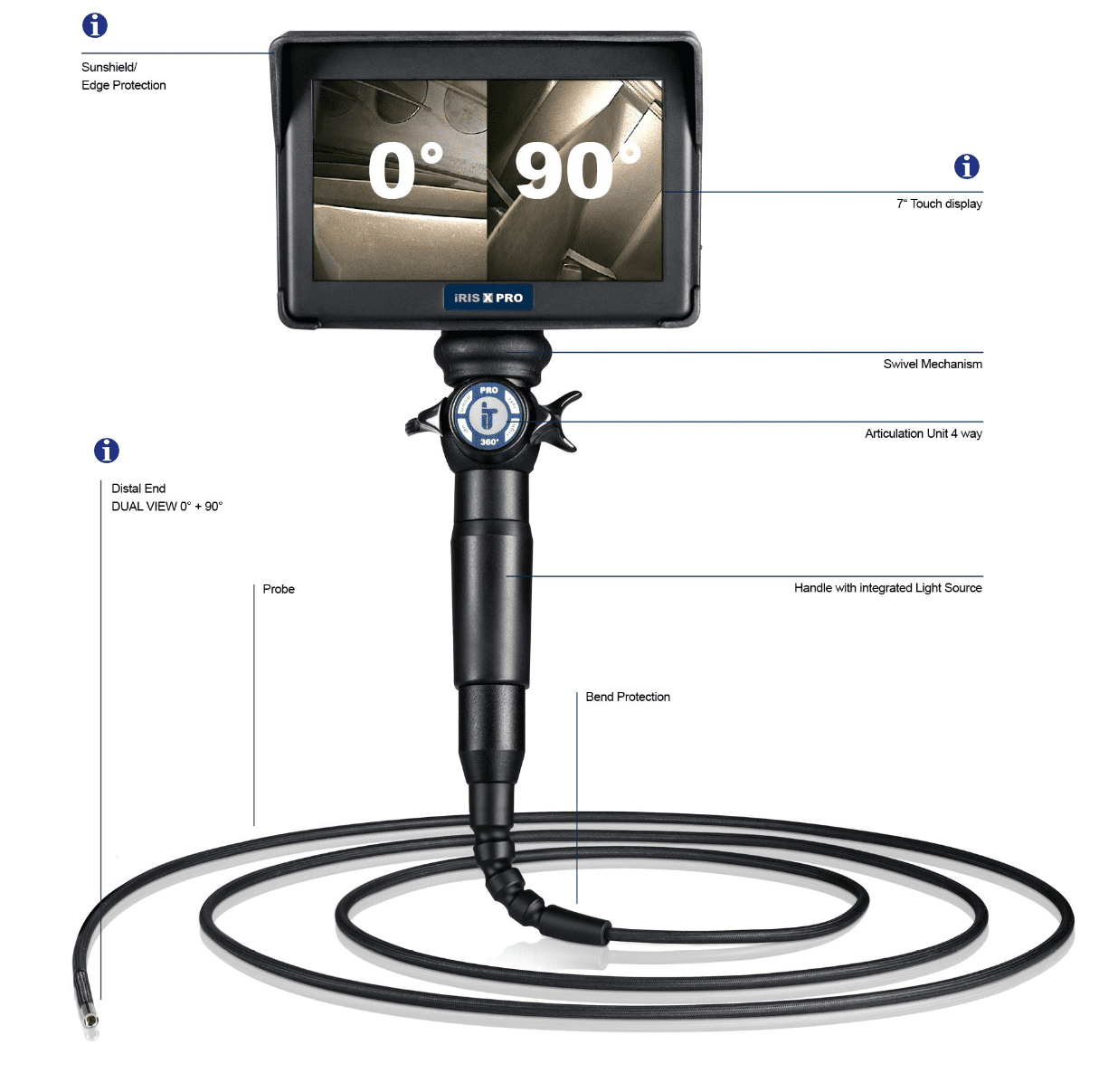

The iRIS X PRO Video System is a small and highly portable Inspection System. 2 cameras in parallel
The system contains 4.0 mm or 6.0 mm scope with 4-way Articulation combining 2 cameras in parallel. You can decide between 0° DOV (direction of view) or one 90° or both together. With diameters of 4.0 mm or 6.0 mm and lengths from 1.5 m to 7.5 m the iRIS X PRO DUAL VIEW System leaves nothing to be desired.
The iCAPTURE 7” Touch- Monitor it establishes a complete and easy to handle Video Inspection System that comes with the iCAPTURE PRO 7” Touch- Monitor or could be connected to any HDMI monitor with our HDMI ZOOM and HDMI PRO devices.It comes in Video Pro System Case (up to 4 m length, IATA standard) or iRis Case plus (from 5 m length, non IATA).
Technical data
| Display size: | 7.0″ | |
| Display resolution: | 1280 x 800 pixel | |
| Operating system: | EIOS (Endoscopic Imaging Operation System) | |
| User interface: | USB | |
| Power supply, primary: | Rechargeable Li-ion battery | |
| Power supply, secondary: | 12 V adapter (optional accesorys) |
| Video format: | MPEG4 (.avi) | |
| Image format: | BMP (.bmp), JPEG (.jpg), PNG (.png) | |
| Storage: | intern 16GB / USB (16GB in delivery) |
| Method: | Comparative Measurement |
| Type: | High-power LED with faseroptic High-power LED on the TIP (6mm X PRO) | |
| Illumination control: | 3 steps |
| Diameter: | 4.0 mm | 6.0 mm | ||
| Working length: | 1.5 – 4.0 m | 1.5 – 7.5 m | ||
| Direction of view: | 0° / 90° | 0° / 90° | ||
| Articulation: | 4-way | 4-way | ||
| Integrated objective lens: | X | X |
| Ergonomics: | ± 90° rotatable display, alt. ±90° rotatable handle | |
| System weight: | 1.65 kg (+/- depence on probe diameter and working length) | |
| Dimensions: | 430 mm x 187 mm x 104 mm | |
| Housing: | Rugged PU with rubber shock protection |
| Tip operating temperature: | -13° F to 176° F (-25° C to +80° C) / 284° F (140° C) less than 5 Minutes | |
| System operating temperature: | -13° F to 115° F (-25° C to +46° C) | |
| Storage temperature: | -13° F to 140° F (-25° C to +60° C) | |
| Relative humidity: | 95% less than – non condensing | |
| Waterproof: | Probe and distal End up to 1 bar- 10.2 m H2O) | |
| Resistance: | Probe and distal End to oils and saline (5%) |
