XLED PRO
The XLED PRO Video System is a small and highly portable Inspection System for all kind of infield inspections.

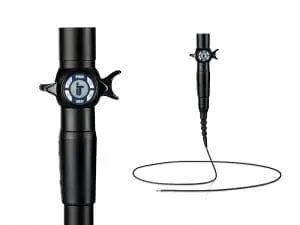

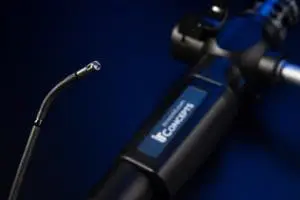

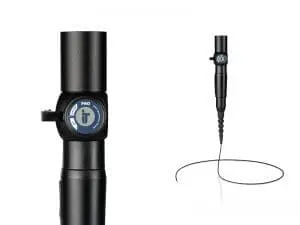

The system contains the 2.4 mm, 3.0 mm, 4.0 mm or 6.0 mm XLED PRO Videoscope with 2-way or 4-way Articulation combining in a unique way a high image quality with an attractive price.
IT Concepts offers different versions of the XLED PRO Probe:
- with 2,4mm and 3mm you have to decide between 0° DOV (direction of view) or one 90° dedicated 90° DOV with a 90° FOV (field of view)
- with diameters of 4.0 mm or 6.0mm and lengths from 1.5.m to 7.5 m the iLED System leaves nothing to be desired.

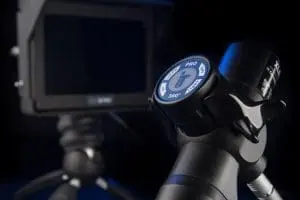

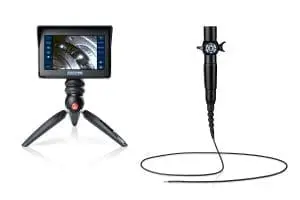

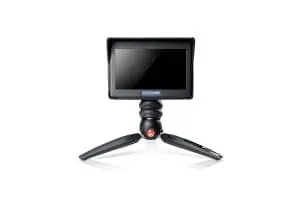

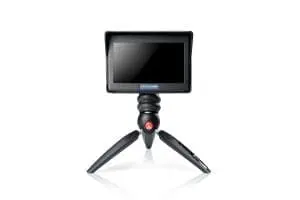

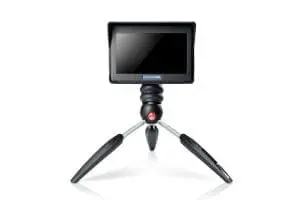

With the new High Power Fiberoptic-LED Hybrid-illumination and the iCAPTURE 7” Touch- Monitor it establishes a complete and easy to handle Video Inspection System. The XLED PRO Kit comes with the iCAPTURE PRO 7” Touch- Monitor or could be connected to any HDMI monitor with our HDMI ZOOM and HDMI PRO devices.It comes in Video Pro System Case (up to 4m length, IATA standard) or iRis Caseplus (from 5 m length, non IATA).
Note that the optional i4 Side View Tip Adapter only fits on iRis DVR, iLED and iSeries 4 mm with 60° Objective!
Technical data
| Display size: | 7.0″ | |
| Display resolution: | 1280 x 800 pixel | |
| Operating system: | EIOS (Endoscopic Imaging Operation System) | |
| User interface: | USB | |
| Power supply, primary: | Rechargeable Li-ion battery | |
| Power supply, secondary: | 12 V adapter (optional accesorys) |
| Video format: | MPEG4 (.avi) | |
| Image format: | BMP (.bmp), JPEG (.jpg), PNG (.png) | |
| Storage: | intern 16GB / USB (16GB in delivery) |
| Method: | Comparative Measurement |
| Sensor: | AIT Advanced Image Sensor |
| Diameter: | 2.4 mm | 3.0 mm | 4.0 mm | 6.0 mm | ||||
| Working length: | 1.0 – 3.0 m | 1.0 – 1.5 m | 1.0 – 3.0 m | 1.0 – 7.5 m | ||||
| Articulation: | 2-way | 2-way | 4-way | 4-way | ||||
| Angle (up / down / left / right): | 120° / 120° / 0 / 0 | 120° / 120° / 0 / 0 | 120° / 120° / 90° / 90° | 160° / 130° / 100° / 100° | ||||
| Integrated objective lens: | X | X | X | X | ||||
| Side view tip adapter: | – | – | – | X | ||||
| Side view option: | X | X | X | X |
| Ergonomics: | swiveling | |
| System weight: | 1.28 kg | |
| Dimensions: | see below | |
| Housing: | Rugged PU with rubber shock protection |
| Tip operating temperature: | -13° F to 176° F (-25° C to +80° C) / 284° F (140° C) less than 5 Minutes | |
| System operating temperature: | -13° F to 115° F (-25° C to +46° C) | |
| Storage temperature: | -13° F to 140° F (-25° C to +60° C) | |
| Relative humidity: | 95% less than – non condensing |
