iRIS 7 PRO

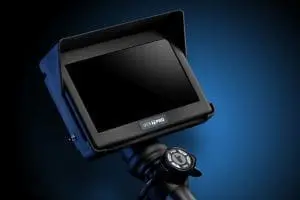

Extremely compact dimensions; minimal weight and optimal handling are the outstanding attributes of the iRis DVR Videoscope System by IT Concepts.

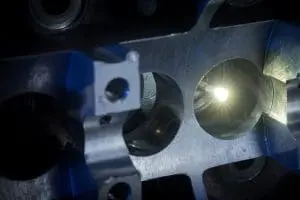

Inspections in remote or inaccessible areas of the harsh industrial environments now are feasible in no time and with an undreamed easiness. Only little efforts and iRis DVR is ready for use within seconds. You can move the distal end to any desired position fast, easy and precisely, thanks to the approved tactile 4-way articulation of up to 180°. Adjustable and interchangeable objectives with different fields of view, f-stops and working distances as well as the high brightness of the LED light source guarantee that you don’t miss any detail on the 7” high resolution TFT Touch Display, running with EIOS. The integrated, changeable and rechargeable high power batteries assure 2 hours of operating time. The balanced handle – designed for real -handed operation – allows long and effortless working. With diameters of 4.0 mm, 6.0 mm or 8.0 mm and lengths from 1.5 m to 7.5 m the iRis DVR leaves nothing to be desired.

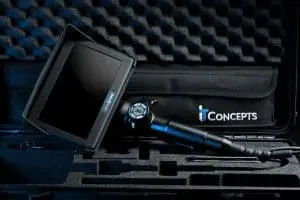

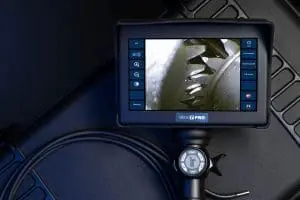

The iRIS PRO Inspection System is a “ready-to-go” Video Kit which includes the iRIS PRO Inspection System specified by articulation, diameter and working length of the following list and all necessary basic accessories, as one battery and one Objective (except for 4 mm), Charger and Neck-Holder. It comes in iRis Case (up to 5 m length, IATA Standard) or iRis Caseplus (from 6m length, non IATA).
Technical data

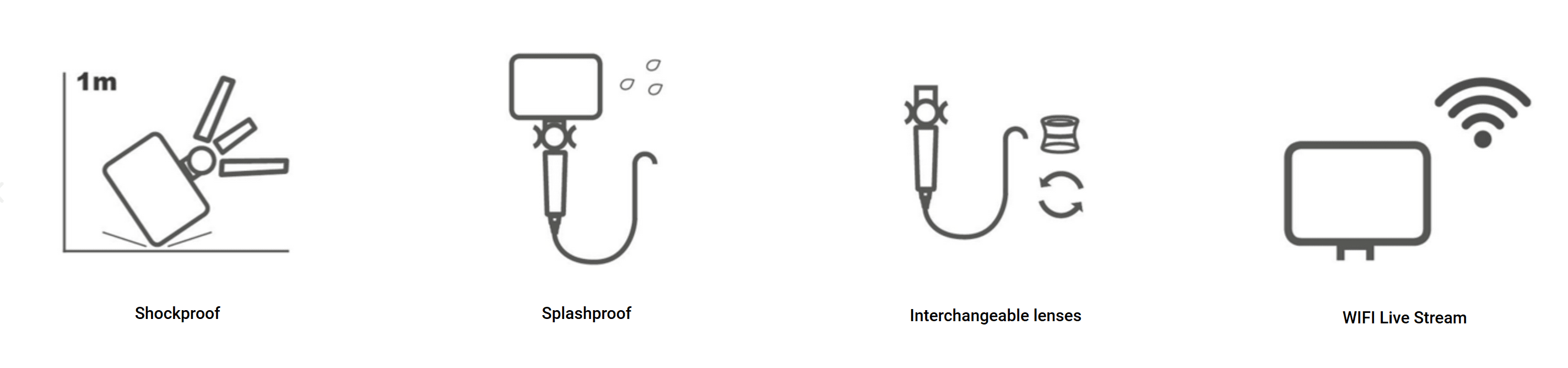

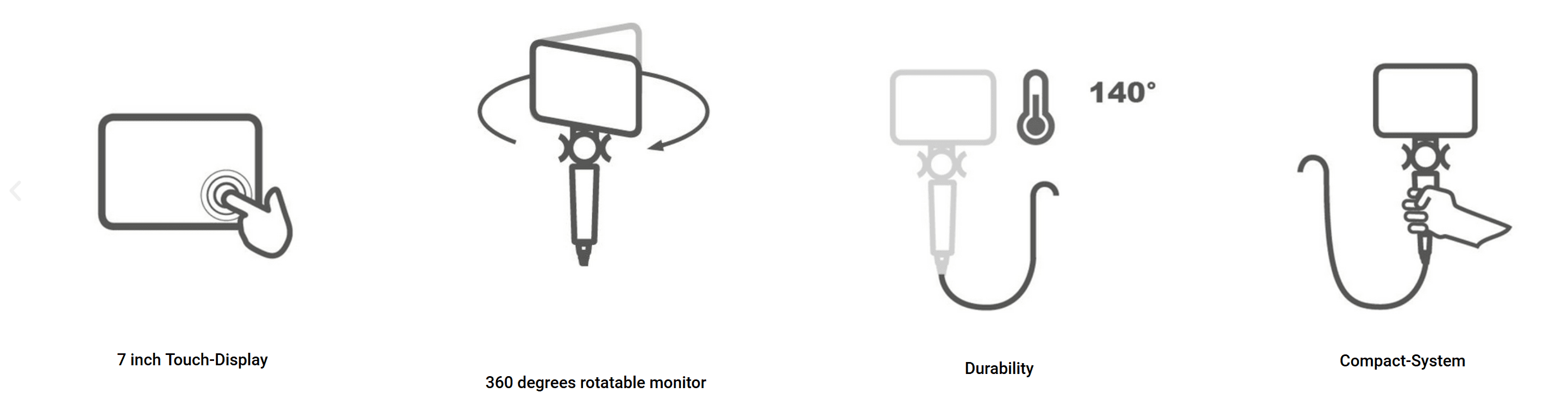

| Display size: | 7.0″ | |
| Display resolution: | 10240 x 600 Pixel | |
| Operating system: | EIOS (Endoscopic Imaging Operation System) | |
| User interface: | USB | |
| Power supply, primary: | Rechargeable Li-ion battery | |
| Power supply, secondary: | 12 V adapter (optional accesorys) |
| Video format: | MPEG4 (.avi) | |
| Image format: | BMP (.bmp), JPEG (.jpg), PNG (.png) | |
| Storage: | intern 16GB / USB (16GB in delivery) |
| Method: | Comparative Measurement |
| Sensor: | High resolution Super HAD CCD image sensor |
| Type: | High-power LED with faseroptic / High-power LED on the TIP (only 6mm X PRO) | |
| Illumination control: | 3 steps |
| Diameter: | 4.0 mm | 6.0 mm | 8.0 mm | |||
| Working length: | 1.0 – 4.0 m | 1.0 – 7.5 m | 1.0 – 7.5 m | |||
| Articulation (bending neck): | 4-way | 4-way | 4-way | |||
| Angle up to 3m (up / down / left / right): | 160° / 130° / 100° / 100° | 160° / 130° / 100° / 100° | 160° / 130° / 100° / 100° | |||
| Integrated objective lens: | X | – | – | |||
| Interchangeable objective lens | – | X | X | |||
| Side view tip adapter: | X | X | X |
| PROBE | DOV | FOV | DOF | CODE |
| 4.0 mm | 0° | 60° | 7 – 50 mm | |
| 4.0 mm | 0° | 60° | 4 – 10 mm | SD |
| 4.0 mm | 0° | 90° | 15 mm – ∞ | |
| 4.0 mm | 0° | 90° | 10 – 30 mm | SD |
| 4.0 mm** | 90° | 60° | 5 – 45 mm | SVTA |
| 6.0 mm | 0° | 60° | 5 mm – ∞ | BLACK |
| 6.0 mm | 0° | 60° | 8 mm – ∞ | YELLOW-B |
| 6.0 mm | 0° | 90° | 5 mm – ∞ | RED |
| 6.0 mm | 0° | 120° | 3 mm – ∞ | GREEN |
| 6.0 mm** | 90° | 60° | 5 – 15 mm | SVTA-CF |
| 6.0 mm** | 90° | 60° | 15 – 50 mm | SVTA-FF |
| 8.0 mm | 0° | 28° | 25 mm – ∞ | BLUE |
| 8.0 mm | 0° | 60° | 5 mm – ∞ | BLACK |
| 8.0 mm | 0° | 60° | 8 mm – ∞ | YELLOW-B |
| 8.0 mm | 0° | 90° | 8 mm – ∞ | SILVER-B |
| 8.0 mm | 0° | 90° | 5 mm – ∞ | RED |
| 8.0 mm** | 90° | 60° | 5 mm – ∞ | SVTA |
| DOV = Direction of View FOV = Field of View DOF = Depth of Focus SVTA = Side View Tip Adapter | CF = Close Focus FF = Far Focus B = Bright objective lens ** = Compatible to FOV 60° |
| Ergonomics: | ± 90° rotatable display, alt. ±90° rotatable handle | |
| Weight: | 1.65Kg (+/- depence on probe diameter and working length) | |
| Dimensions: | 430 mm x 187 mm x 104 mm | |
| Housing: | Rugged PU with rubber shock protection |
| Tip operating temperature: | -13° F to 176° F (-25° C to +80° C) / 284° F (140° C) less than 5 Minutes | |
| System operating temperature: | -25° C to +46° C | |
| Storage temperature: | -25° C to +60° C | |
| Relative humidity: | 95% less than – non condensing | |
| Waterproof: | Probe and distal End up to 1 bar – 10.2m H2O | |
| Resistance: | Probe and distal End to oils and saline (5%) |
